Description

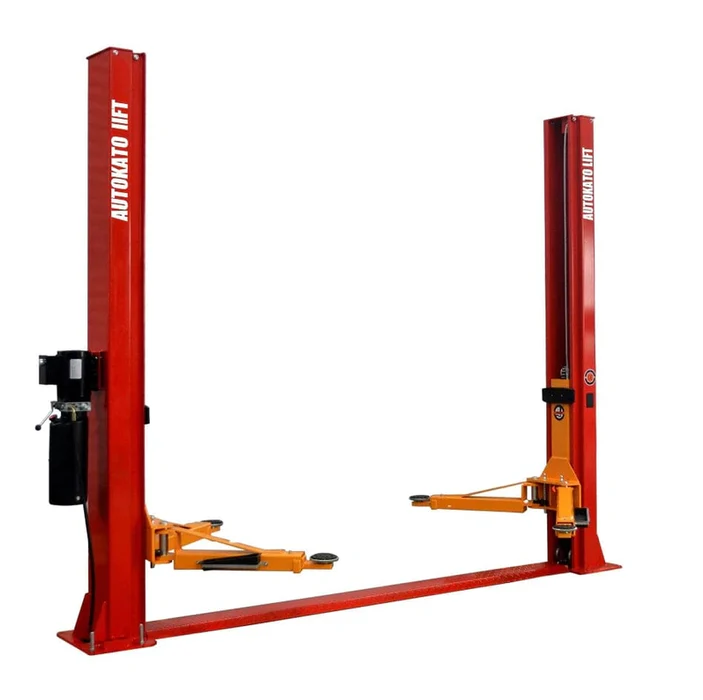

Running a garage means dealing with tight space, heavy vehicles, and nonstop jobs. The Katool KT-H100 2 Post Car Lift 10 000 lbs takes that stress off your shoulders. It’s built strong, certified safe, and designed to help you move faster without cutting corners.
With a full 10,000-lb capacity, you won’t be turning away SUVs, light trucks, or bigger cars. This lift handles them all. CE certification and over-tested safety ratings back it up, while dual hydraulic cylinders give you smooth, steady motion every time.
The design works with you, not against you. Symmetric arms and extension pads make lining up lift points simple. Rubber guards keep doors safe, guardrails protect your crew, and the built-in tool tray keeps your bay organized.
It raises high enough to stand and work comfortably, drops low for easy access to low-profile cars, and has wide clearance so vehicles can move in and out quickly. Whether your shop runs on 110V or 220V, this lift is ready to plug in and go.
At the end of the day, it’s about trust. If you need a 2 post car lift 10 000 lbs that’s tough, safe, and built for the pace of real garage work, the KT-H100 delivers every time.
Specifications
| Lifting Capacity | 10000lbs/4500KG |
| Max. Lifting Height | 70.75″/1800mm |
| Min. Height | 4.25″/110mm |
| Height Overall | 110.25″/2800mm |
| Width Overall | 142.25″/3614mm |
| Outside Column | 128″/3250mm |
| Inside Column | 110.25″/2800mm |
| Dirve-Thru Clearance | 94.5″/2400mm |
| Front Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 1256lbs/570KG |
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Warranty
Products sold by IronWolf Systems include the original manufacturer’s limited warranty. Katool, for instance, offers a one-year (12-month) warranty covering parts and manufacturing defects.
1-Year Parts Warranty: Covers replacement of defective parts resulting from normal use.
3-Year Structural Warranty: Covers defects in the main structure or frame of the product under normal use conditions.
Free Shipping on Warranty Parts: Replacement parts under warranty are shipped free of charge.
Labor Excluded: Labor, service, or installation costs are not covered.
Non-Transferable: Warranty applies only to the original purchaser with valid proof of purchase.
Do not disassemble any product before a warranty claim is approved, as this may void coverage.
If you believe your product has a defect, please contact our support team at contact@ironwolfsystems.com with your order number, photos, or videos of the issue.
For complete details, please review our full Warranty Policy.
